$198.62 Inc. GST
Upgrade your vehicle’s rear signaling with the all-new CRL605LED Series Jumbo LED Combination Taillight with Reverse Light. Engineered for heavy-duty applications, this lamp delivers unparalleled quality, performance, and durability. With high visibility optics and a modular design, the CRL605LED series can be customized to include stop, rear position, direction indicator, and reverse functions. Each module also features an integrated reflector, providing a complete and compliant rear signaling solution. Constructed with ultra-strong polycarbonate lenses with enhanced chemical protection and a toughened ABS base, the CRL605LED series is built to withstand the harshest conditions and continuous operation, making it ideal for OEM and commercial vehicle applications.
| Applications | • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds |
| Functions | Stop / Rear Position / Direction Indicator / Reverse / Reflector |
| Voltage | 9-33V DC Varivolt® |
| Wattage | Stop:3W / Rear Position:0.4W Indicator:3W / Reverse:2.5W |
| Mounting | Rear Bolt Mount |
| Materials | Polycarbonate Lens ABS Body / Modular heavy duty ABS base |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M |

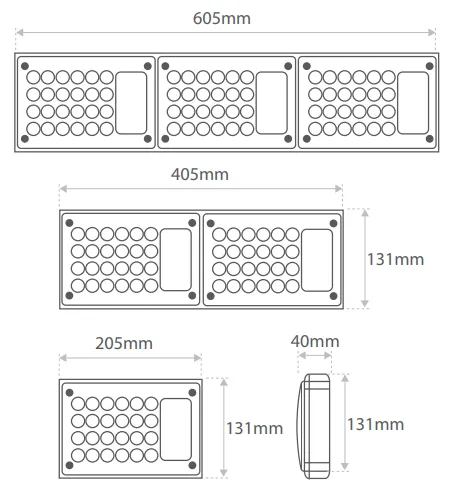

| Dimensions | 601x131x42mm |
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00 |
| CRN | Stop – 48002, Tail – 48003, Direction – 48001, Reverse – 48061, Reflector – 48284 |
Any products thought to be faulty can be returned to Trailer Spare Parts Australia for investigation at the customer’s expense. We reserve the right to determine whether the item/s are faulty or have been incorrectly used or mistreated. We are happy to accept any unwanted stock within 7 days of invoice. Returned items must be in “as new” condition for resale. Any specially ordered axles (IRS, Overlay and Drop Axles) are not returnable. Trailer Spare Parts Australia charges a re-stocking fee of 15% to any authorized returns, plus freight if the goods returned are not subject to warranty.
If the goods are subject to warranty, Trailer Spare Parts Australia will replace the goods and pay all freight inbound and outbound under our terms and conditions. All products sold by Trailer Spare Parts Australia carry a 12 months warranty under our terms and conditions.
Recommendations for these terms can be found on each product page, except for disposable parts (bearings, brake pads, etc).
Pay online, over the phone, in store or via bank transfer.
We offer multiple shipping options.
We have over 13 years of trade experience.
IMPORTANT: The lines highlighted in yellow are the products we supply.
| Wheel Type | Stud Diameter | Stud Number | Inches PCD | MM PCD | Centre to Centre of Adjacent Studs | Centre to Centre of Adjacent Studs |
|---|---|---|---|---|---|---|
| Gemini | 7/16" | 4 | 100.00 | 2 13/16" | 70.7 | |
| Mini | 7/16" | 4 | 4" | 101.60 | 2 13/16" | 71.84 |
| Capri | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Cortina/Telstar | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Datsun 1600 | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Early Ford | 1/2" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Toyota Corona | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Valiant to 71 | 7/16" | 5 | 4" | 101.60 | 2 3/9" | 59.72 |
| Holden HT HG HK | 7/16" | 5 | 4 1/4" | 107.95 | 2 1/2" | 63.45 |
| Ford | 1/2" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Valiant 71 - 72 | 7/16" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Commodore | 7/16" | 5 | 120.00 | 2.776" | 70.53 | |
| Holden HQ HJ HX | 7/16" | 5 | 4 3/4" | 120.65 | 2 13/16" | 70.91 |
| Ford F100 | 1/2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Ford-Jeep | 1.2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Land Rover | 5/8" | 5 | 6 1/2" | 165.10 | 3 13/16" | 96.98 |
| Land Cruiser 100 Series | 9/16" | 5 | 150.00 | 88.17 | ||
| Land Cruiser 4WD | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Patrol | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Navara D40 | 1/2" | 6 | 114.30 |
