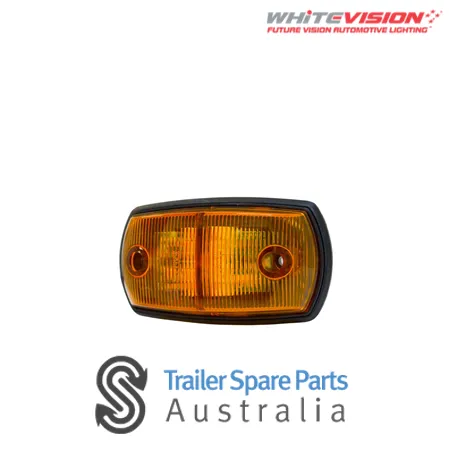

The SM13 LED Series marker lamps are designed for the direct replacement of it’s existing incandescent models. The lamps are made for heavy duty use which features a high impact polycarbonate lens and rubber base for maximum protection against constant vibration environments. Fully ADR Approved these lamps are perfect for upgrading existing incandescent versions to LEDs and is suited to OEM and commercial vehicle applications.
• Heavy duty LED marker
• Retrofits same incandescent style lamp series
• Can be fitted from front or rear of lamp
• High visibility design
• Fully ADR Approved
| Applications | • Trucks • Rigid Bodies • Bus & Coach • Trailers • Custom Builds |
| Functions | Side Marker |
| Voltage | 9-33V DC Varivolt® |
| Wattage | All Functions: 0.36W @12V |
| Mounting | Smart Clip™ |
| Materials | High Impact PMMA Lens ABS Body |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 3.0M |
| Dimensions | 70x41x23mm |
| ADR Compliance CRN Certification | SM60RA3LED: Side Marker:45/01 / CRN: 29290 |
Any products thought to be faulty can be returned to Trailer Spare Parts Australia for investigation at the customer’s expense. We reserve the right to determine whether the item/s are faulty or have been incorrectly used or mistreated. We are happy to accept any unwanted stock within 14 days of delivery or collection. Returned items must be in “as new” condition for resale. Any specially ordered axles (IRS, Overlay and Drop Axles) are not returnable. Trailer Spare Parts Australia charges a re-stocking fee of 15% to any authorized returns, plus freight if the goods returned are not subject to warranty.
If the goods are subject to warranty, Trailer Spare Parts Australia will replace the goods and pay all freight inbound and outbound under our terms and conditions. All products sold by Trailer Spare Parts Australia carry a 12 months warranty under our terms and conditions.
Recommendations for these terms can be found on each product page, except for disposable parts (bearings, brake pads, etc).
IMPORTANT: The lines highlighted in yellow are the products we supply.
| Wheel Type | Stud Diameter | Stud Number | Inches PCD | MM PCD | Centre to Centre of Adjacent Studs | Centre to Centre of Adjacent Studs |
|---|---|---|---|---|---|---|
| Gemini | 7/16" | 4 | 100.00 | 2 13/16" | 70.7 | |
| Mini | 7/16" | 4 | 4" | 101.60 | 2 13/16" | 71.84 |
| Capri | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Cortina/Telstar | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Datsun 1600 | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Early Ford | 1/2" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Toyota Corona | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Valiant to 71 | 7/16" | 5 | 4" | 101.60 | 2 3/9" | 59.72 |
| Holden HT HG HK | 7/16" | 5 | 4 1/4" | 107.95 | 2 1/2" | 63.45 |
| Ford | 1/2" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Valiant 71 - 72 | 7/16" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Commodore | 7/16" | 5 | 120.00 | 2.776" | 70.53 | |
| Holden HQ HJ HX | 7/16" | 5 | 4 3/4" | 120.65 | 2 13/16" | 70.91 |
| Ford F100 | 1/2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Ford-Jeep | 1.2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Land Rover | 5/8" | 5 | 6 1/2" | 165.10 | 3 13/16" | 96.98 |
| Land Cruiser 100 Series | 9/16" | 5 | 150.00 | 88.17 | ||
| Land Cruiser 4WD | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Patrol | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Navara D40 | 1/2" | 6 | 114.30 |
