$326.70 Inc. GST
1500Kg 7 Leaf x 60mm x 7mm Off Road Eye to Eye Rebound Spring Kit
Enhance your trailer’s off-road capability with our robust 1500Kg 7 Leaf x 60mm x 7mm Off Road Eye to Eye Rebound Spring Kit. Designed to provide superior shock absorption and stability, this kit ensures your trailer can handle the toughest terrains with ease.
Kit Includes:
Key Features:
Specifications:
Applications:
Upgrade your trailer’s suspension system with our 1500Kg 7 Leaf x 60mm x 7mm Off Road Eye to Eye Rebound Spring Kit for enhanced durability and performance on any terrain.
This kit includes:

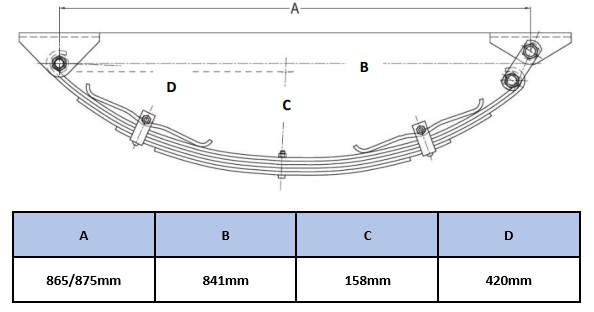

The rebound spring on either end acts as a shock absorber when the spring is under load. The bracket for the rebound spring also holds all the other leaves in their correct position. The second leaf wraps around the eye to provide extra support during shock-loading events.
Description:
| Weight | 35 kg |
|---|---|
| Dimensions | 100 × 40 × 40 cm |
Any products thought to be faulty can be returned to Trailer Spare Parts Australia for investigation at the customer’s expense. We reserve the right to determine whether the item/s are faulty or have been incorrectly used or mistreated. We are happy to accept any unwanted stock within 7 days of invoice. Returned items must be in “as new” condition for resale. Any specially ordered axles (IRS, Overlay and Drop Axles) are not returnable. Trailer Spare Parts Australia charges a re-stocking fee of 15% to any authorized returns, plus freight if the goods returned are not subject to warranty.
If the goods are subject to warranty, Trailer Spare Parts Australia will replace the goods and pay all freight inbound and outbound under our terms and conditions. All products sold by Trailer Spare Parts Australia carry a 12 months warranty under our terms and conditions.
Recommendations for these terms can be found on each product page, except for disposable parts (bearings, brake pads, etc).
IMPORTANT: The lines highlighted in yellow are the products we supply.
| Wheel Type | Stud Diameter | Stud Number | Inches PCD | MM PCD | Centre to Centre of Adjacent Studs | Centre to Centre of Adjacent Studs |
|---|---|---|---|---|---|---|
| Gemini | 7/16" | 4 | 100.00 | 2 13/16" | 70.7 | |
| Mini | 7/16" | 4 | 4" | 101.60 | 2 13/16" | 71.84 |
| Capri | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Cortina/Telstar | 7/16" | 4 | 4 1/4" | 107.95 | 3" | 76.33 |
| Datsun 1600 | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Early Ford | 1/2" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Toyota Corona | 7/16" | 4 | 4 1/2" | 114.30 | 3 3/16" | 80.82 |
| Valiant to 71 | 7/16" | 5 | 4" | 101.60 | 2 3/9" | 59.72 |
| Holden HT HG HK | 7/16" | 5 | 4 1/4" | 107.95 | 2 1/2" | 63.45 |
| Ford | 1/2" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Valiant 71 - 72 | 7/16" | 5 | 4 1/2" | 114.30 | 2 5/8" | 67.18 |
| Commodore | 7/16" | 5 | 120.00 | 2.776" | 70.53 | |
| Holden HQ HJ HX | 7/16" | 5 | 4 3/4" | 120.65 | 2 13/16" | 70.91 |
| Ford F100 | 1/2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Ford-Jeep | 1.2" | 5 | 5 1/2" | 139.70 | 3 1/4" | 82.11 |
| Land Rover | 5/8" | 5 | 6 1/2" | 165.10 | 3 13/16" | 96.98 |
| Land Cruiser 100 Series | 9/16" | 5 | 150.00 | 88.17 | ||
| Land Cruiser 4WD | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Patrol | 1/2" | 6 | 5 1/2" | 139.70 | 2 3/4" | 69.85 |
| Nissan Navara D40 | 1/2" | 6 | 114.30 |
