10″ Ford Disc Hub

SKU: HD-FD

Estimated Shipping

$63.76 Inc. GST

123 in stock

Product Description

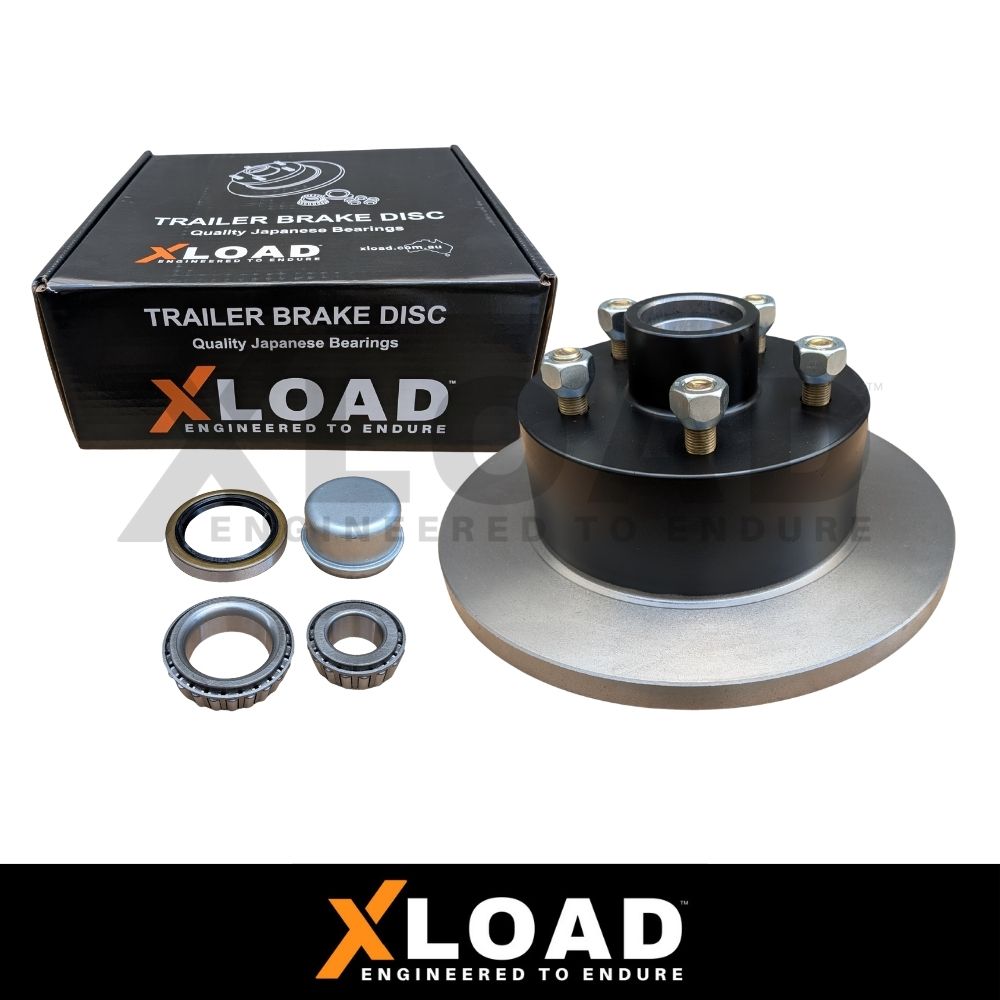

5 Stud Ford Disc Hub

Disc Hub Includes:

  • 1 x 5 Stud Ford Disc Hub (114.30mm PCD) – 1/2″ UNF Studs
  • 5 x 1/2″ Wheel Nuts
  • 1 x Seal
  • 1 x Dust Cap
  • 1 x Inner Bearing/Cup
  • 1 x Outer Bearing/Cup

Note: Cups are pressed in the hub

“What bearings do I need?”

Name brands are a description of PCD, not an indication of a genuine part.

Warranty & Returns

Any products thought to be faulty can be returned to Trailer Spare Parts Australia for investigation at the customer’s expense. We reserve the right to determine whether the item/s are faulty or have been incorrectly used or mistreated. We are happy to accept any unwanted stock within 7 days of invoice. Returned items must be in “as new” condition for resale. Any specially ordered axles (IRS, Overlay and Drop Axles) are not returnable. Trailer Spare Parts Australia charges a re-stocking fee of 15% to any authorized returns, plus freight if the goods returned are not subject to warranty.

If the goods are subject to warranty, Trailer Spare Parts Australia will replace the goods and pay all freight inbound and outbound under our terms and conditions. All products sold by Trailer Spare Parts Australia carry a 12 months warranty under our terms and conditions.
Recommendations for these terms can be found on each product page, except for disposable parts (bearings, brake pads, etc).

Ask a Question

Related Trailer Products

Reviews

Axle Length Calculator

Holden / Ford / Parallel

  1. CW – Measure the width of your trailer body.
  2. BS – Measure the offset of the rims being used “with tyre fitted”.
  3. TC – 50mm Gap used on calculator as Standard.



Dexter

  1. CW – Measure the width of your trailer body.
  2. BS – Measure the offset of the rims being used “with tyre fitted”.
  3. TC – 40mm Gap used on calculator as Standard.



Determine the Rim Stud Pattern

Rim Stud Pattern

stud patterns on your trailer

IMPORTANT: The lines highlighted in yellow are the products we supply.

Wheel Type Stud Diameter Stud Number Inches PCD MM PCD Centre to Centre of Adjacent Studs Centre to Centre of Adjacent Studs
Gemini 7/16" 4 100.00 2 13/16" 70.7
Mini 7/16" 4 4" 101.60 2 13/16" 71.84
Capri 7/16" 4 4 1/4" 107.95 3" 76.33
Cortina/Telstar 7/16" 4 4 1/4" 107.95 3" 76.33
Datsun 1600 7/16" 4 4 1/2" 114.30 3 3/16" 80.82
Early Ford 1/2" 4 4 1/2" 114.30 3 3/16" 80.82
Toyota Corona 7/16" 4 4 1/2" 114.30 3 3/16" 80.82
Valiant to 71 7/16" 5 4" 101.60 2 3/9" 59.72
Holden HT HG HK 7/16" 5 4 1/4" 107.95 2 1/2" 63.45
Ford 1/2" 5 4 1/2" 114.30 2 5/8" 67.18
Valiant 71 - 72 7/16" 5 4 1/2" 114.30 2 5/8" 67.18
Commodore 7/16" 5 120.00 2.776" 70.53
Holden HQ HJ HX 7/16" 5 4 3/4" 120.65 2 13/16" 70.91
Ford F100 1/2" 5 5 1/2" 139.70 3 1/4" 82.11
Ford-Jeep 1.2" 5 5 1/2" 139.70 3 1/4" 82.11
Land Rover 5/8" 5 6 1/2" 165.10 3 13/16" 96.98
Land Cruiser 100 Series 9/16" 5 150.00 88.17
Land Cruiser 4WD 1/2" 6 5 1/2" 139.70 2 3/4" 69.85
Nissan Patrol 1/2" 6 5 1/2" 139.70 2 3/4" 69.85
Nissan Navara D40 1/2" 6 114.30
